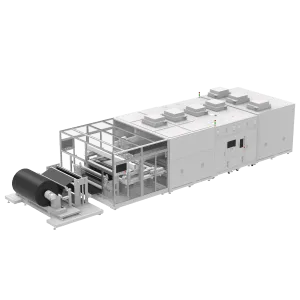

Polarizer Roll to Sheet Cutting System

Product Description

Polarizer laser cutting manipulates laser beam to vaporize or melt the material at working area to cut the polarizer. Laser beam can be controlled by CNC to achieve automatic complicated trajectory cutting to get desired material shape.

Video

Play Video

Advantages

  1. Flexible material shape cutting ability;
  2. PSO & Pulse PWM following functions;
  3. High speed and good quality processing;
  4. Multiple cutting heads with different parameters;
  5. XYZ motion system with high accuracy positioning;
  6. Consistent cutting quality assurance.

Specifications

Laser

Wavelength

Average Power

Peak Power

Positioning Repeatability

Material Roll Width

CO2 /IR/UV & ps are optional

9.3µm,355nm

5-95w(CO2)

≥240w

<±1.5μm

Max width 2500mm

Material

Beam Size

Machine Power

Equipment Size

Machine Dimensions



Protecting Film/Release Film/Reflflecting Film

30μm

60kW

AC380V

22000x3600x2600mm



solutionS

Application

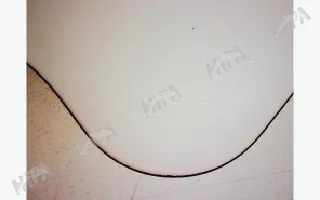

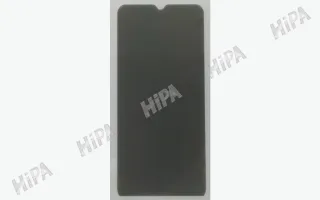

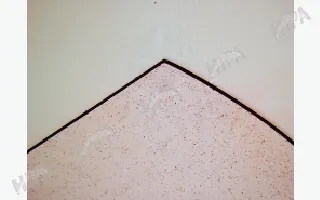

Effects
