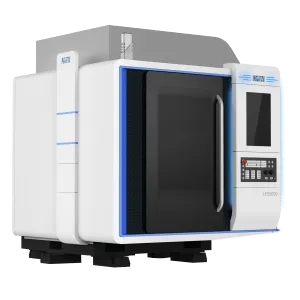

Five Axis Laser Tool Processing Machine

Product Description

This equipment is a five axis laser processing equipment (machine tool XYZ+AC)+laser galvanometer linkage for super hard diamond industrial tools. It has the function of space complex curve movement track plus laser processing, and can process many super hard material, such as PCD, PCBN, CVD, MCD, etc. The laser removal efficiency of super hard material is very high, and there is no traditional consumables. It can precisely position and process with the machine tool combined with five axis movement and laser technology, It can efficiently process various complex and precise 3D features with complex curved edges, chip breaking grooves, milling heads, etc.

Video

Play Video

Advantages

  1. There is no industrial waste water in the process of processing, which is more environmentally friendly.
  2. The processing is not affected by the conductive properties of materials. Compared with EDM, it is more stable.
  3. The photothermal effect of laser can be used to form a non oxidizing notch, which effectively prevents the graphitization of PCD diamond particles.
  4. High processing efficiency for super hard material, and do not direct contact processing.

Specifications

Laser

Wavelength

Average Power

Positioning Accuracy

Repeat positioning Accuracy

Acceleration

Processing Materials

Machining Accuracy

Machine Power

ns, ps, fs

1064nm

Customizable

<±5μm

<±1.5μm

2G

PCD, PCBN, CVD, MCD and other super hard material

<±5μm

<5kw

solutions

Application

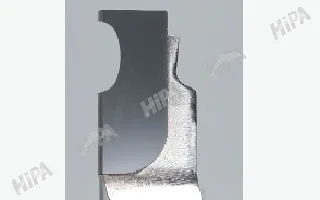

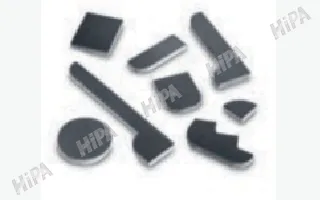

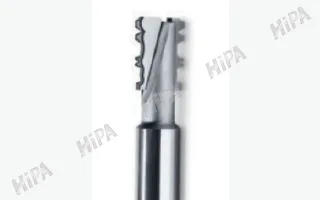

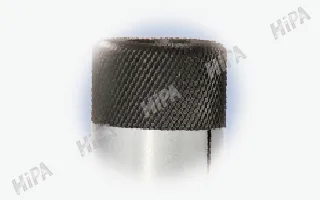

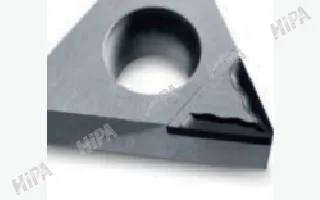

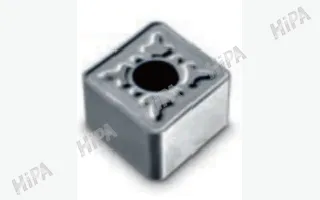

Effects
