The solder paste laser welding system adopts an automatic solder paste placing device, and the solder paste is applied to the products to be welded. The solder paste and the workpiece are heated by the laser. And when the solder paste is melted, it wets the surface of the product, diffuses and forms a bonding layer to achieve a stable connection.
Video
Advantages
Coaxial temperature control system, real-time online monitoring and feedback adjustment, multiple sets of temperature control curves can be preset;
Coaxial vision positioning system and real-time monitoring of welding process improve processing accuracy and automation;
The laser spot shape and size can be customized, and the best solution can be provided according to different shapes of solder joints;
Four-way coaxial (laser, indicating red light, CCD, temperature sensor) avoid repeated design and debugging of multiple optical paths;
Precise and controllable laser energy, high processing efficiency for thermal components, FPC/PCB, etc., and good connection performance.
Specifications
Laser Source | Wavelength | Average Power | Fiber Length | Fiber Interface | Cooling Mode |
Diode Laser | 915 / 976nm | 100-300W | 5m (Customizable) | D80 / SMA905 | Air-cooling |
FOV | Positioning Accuracy | Solder Paste Placing Accuracy | Control Manner | Machine Weight | Machine Dimension |
14×10mm | ±5μm | ±1mg | Industrial PC/PLC | <400kg | 900×1000×1800mm |
solutions
Application

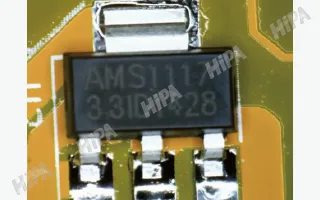

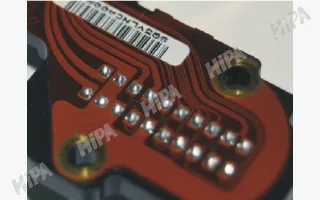

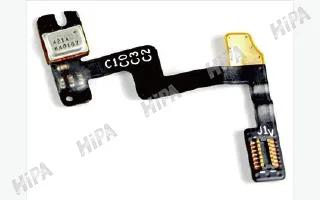

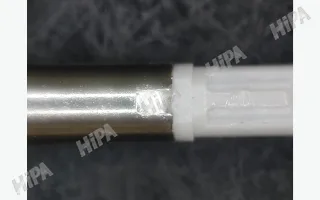

Effects
Consumer electronics, semiconductors, automotive electronics, acoustics, communications, medical devices, military, etc.
