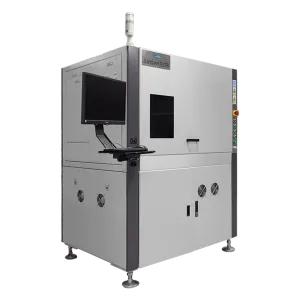

High Voltage Resistor Tester

Product Description

The high-voltage tester is mainly used for short-term overload (STOL) test of high-quality and high-precision chip resistors. The resistance change before and after the high-voltage test is compared by the measurement system, and the bad resistors are screened out and cut through by laser to reduce the risk of resistance instability. Customers can edit the test conditions to meet the quality requirements of different specifications of resistors. It is an efficient high-voltage method with a screening function.

Video

Play Video

Advantages

1. It adopts a customized fiber laser to provide customers with the best cost performance ;

2. Self-developed measurement / control system, with independent intellectual property rights;

3. Self-developed software operating system for customization;

4. The detection resistance range is 1Ω -10MΩ;

5. Using RS-232 interface, AC / DC power supply can be programmed.

Specifications

Model

Specifications

Measuring Range

Maximum Voltage

High Voltage Protection

Laser Power

Beam Expander

JS-M100-HVF-Ⅰ

0402 and above

1Ω -10MΩ

600V

Over current fusing alarm

20W/30W

2X

Focal length of field mirror

Scanning accuracy of galvanometer

Repeated clamping accuracy of platform

Positioning accuracy of carrier motion

Measurement channel

Fixed mode of probe card



125mm

±1μm

≤5μm

1μm

192

Adjustable horizontal plane



solutions

Application

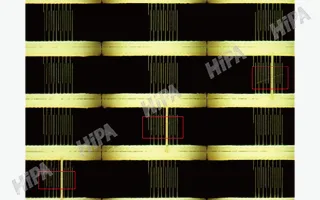

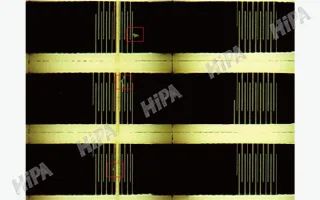

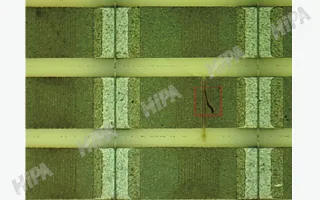

Effects
