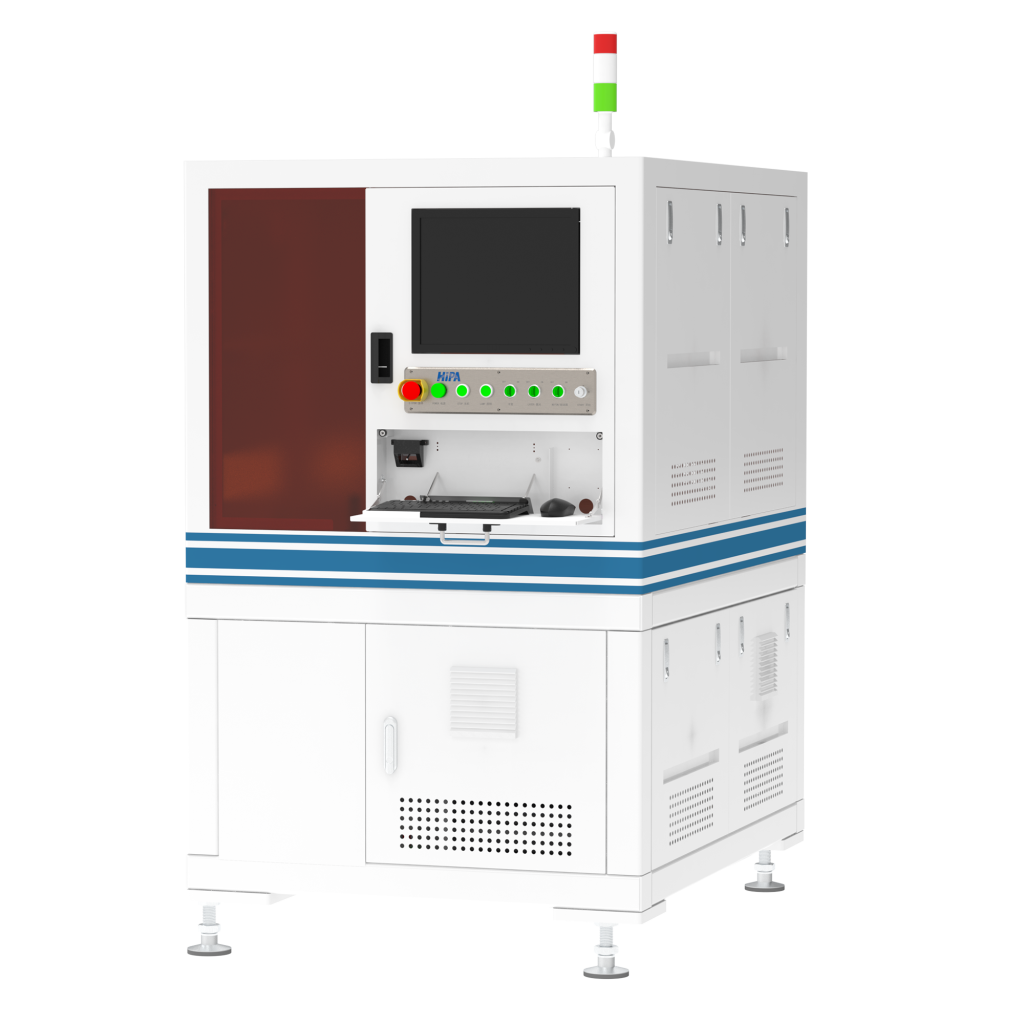

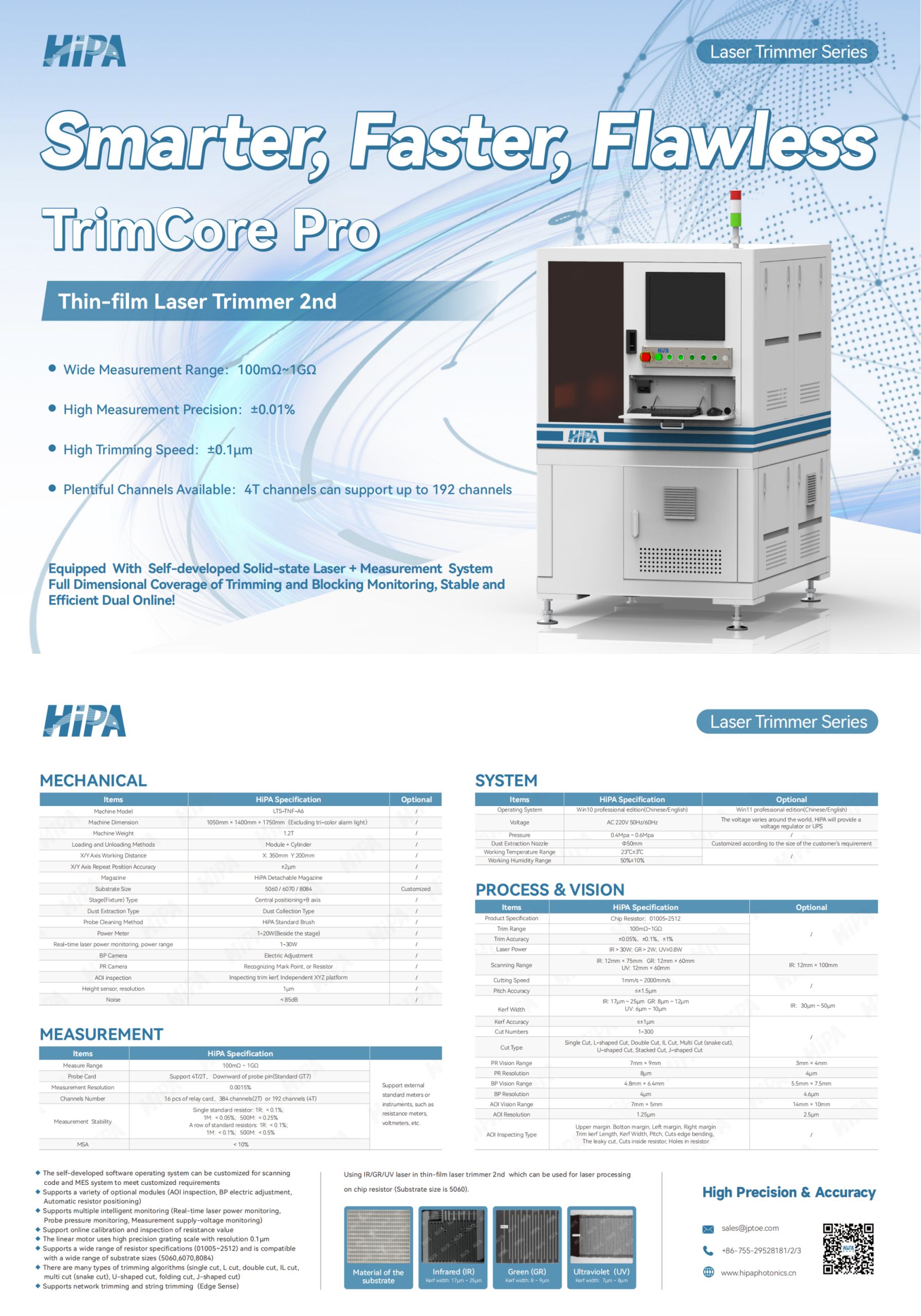

The TrimCore Pro Laser Trimmer delivers high-speed, high-precision resistor trimming with accuracy up to ±0.01%. Supporting IR/GR/UV lasers and chip sizes from 01005 to 2512, it ensures kerf widths as fine as 7 μm. Equipped with intelligent monitoring, multiple trimming algorithms, and up to 192 channels, it provides smarter automation, faster throughput, and flawless quality for mass production.
Video
Advantages
◆ The self-developed software operating system can be customized for scanning code and MES system to meet customized requirements
◆ Supports a variety of optional modules (AOI inspection, BP electric adjustment, Automatic resistor positioning)
◆ Supports multiple intelligent monitoring (Real-time laser power monitoring, Probe pressure monitoring, Measurement supply-voltage monitoring)
◆ Support online calibration and inspection of resistance value
◆ The linear motor uses high precision grating scale with resolution 0.1μm
◆ Supports a wide range of resistor specifications (01005~2512) and is compatible with a wide range of substrate sizes (5060,6070,8084)
◆ There are many types of trimming algorithms (single cut, L cut, double cut, IL cut, multi cut (snake cut), U-shaped cut, folding cut, J-shaped cut)
◆ Supports network trimming and string trimming (Edge Sense)
Specifications
Items | Specification | Optional |
Product Specification | Chip Resistor：01005-2512 | / |
Trim Range | 100 mΩ ~ 1 GΩ | / |
Trim Accuracy | ±0.05%、±0.1%、±1% | / |
Laser Power | IR: 12mm × 75mm GR: 12mm × 60mm UV: 12mm × 60mm | IR: 12mm × 100mm |
Scanning Range | 1 mm/s ~ 2000 mm/s | / |
Kerf Width | IR: 17μm ~ 25μm GR: 8μm ~ 12μm UV: 6μm ~ 10μm | IR：30μm～50μm |
Kerf Accuracy | ≤ ±1.5 μm | / |
