- High Quality
- High Efficiency
- High Precision
- High Stability
Video
Advantages
1. Marble gantry structure to achieve high rigidity and processing stability；
2. Optical splitting and light switching system to support the two sets of processing platforms working simultaneously. Compatible with a variety of material cutting；
3. Support single-axis processing. Can exchange to ultra-high power single-axis cutting machine to process thicker products;
4. Reserve the position of the loading and unloading interface Support reel to sheet and sheet by sheet;
5. High pressure dust collection device to reduce the dust generated during processing;
6. Automatic measurement of thickness of sampling material and correction of processing position;
7. JPT self-developed software which is easy to operate and can be changed at any time according to customer needs；
8. Equipped with processing log and fault log function to grasp the production dynamics easily.
Specifications
| Item | Spec | Item | Spec |
| Laser | UV-30 | Processing range | Dual platform 600×300mm |
| Laser power | 30W | Repeatability accuracy | ±1μm |
| Scope of scan head | 48×48mm | Positioning accuracy | ±3μm |
| Laser pulse frequency | 30-1000kHz | Overall machining accuracy | ±20μm |
| Cutting line width and band range | ＜30μm; 355nm | Depth control accuracy | ±30μm |
| Single – and dual-header switch function | Yes | Machine size | 1550×1350×1700mm |
| Compensate for expansion and contraction | Yes | Machine weight | 2000kg |
| Auto focus function | Yes | Loading and unloading method | Reel to sheet, sheet by sheet |
| Cutting jointed board function | Yes | Cutting efficiency | 1000-5000mm/s |
| Processing material | Cover layer, PET film, PP film, PI film… | Memory capacity | 1TB |
solutions
Application

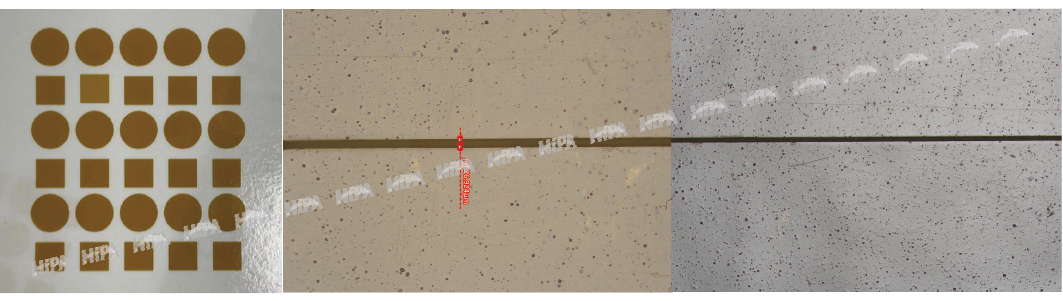

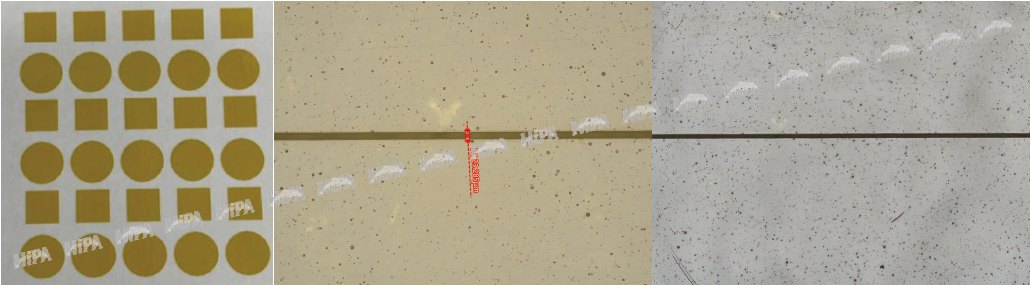

Effects
