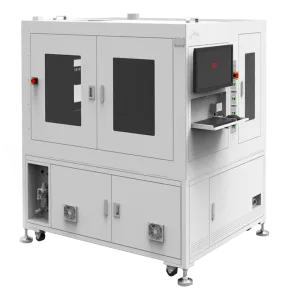

5-Axis Linkage Laser Glue Cleaning / Cutting Machine
- Creative
- Customizable
- Adaptive
Menu
Product Description
The laser system uses the dense pulse energy of a carbon dioxide laser to act on the black glue covered on the iron sheet, causing it to partially gasify and partially form larger dust particles that are sucked away with the vacuum, achieving the goal of laser glue removal. The laser system is also equipped with an independently developed AOI detection system, which can quickly and accurately determine the size and appearance of the area after glue removal.
Video
Play Video
Advantages
- Build a high-precision multi-axis control system independently, which can achieve 14 axis control, 5 axis machining and detection linkage control;
- Can quickly switch between different adhesive removal surfaces of the product;
- The CCD system can quickly and accurately confirm the target adhesive removal area;
- Laser processing and AOI detection can be carried out simultaneously, shortening CT;
- There is no residue on the surface, and high removal rate.
Specifications
Laser | Wavelength | Average Power | Positioning Accuracy | Repeat Positioning Accuracy | Thunder Carving Glue Cleaning Area | Cleaning Glue Material | Spot Diameter | Power |
CO2 Laser | 9.3μm | 0~60w | ±12.5μm | ±3μm | 2mm×0.58mm | 3M-1902 ( Black ) | Minimum 200μm | ＜5kw |
solutionS
Application

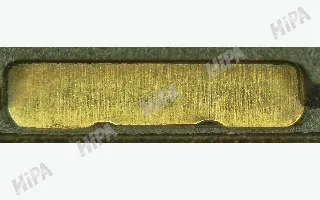

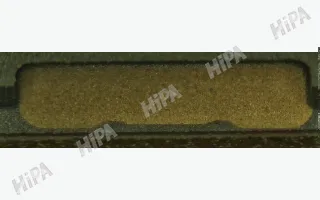

Effects
Previous image
Next image
