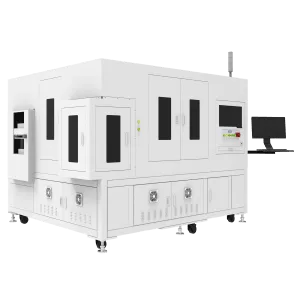

Automatic FPCB Laser Cutting and Placing System

Product Description

Twin laser cutting station design, for high cutting speed and accuracy. Fully automated cutting, PNP, loading & unloading.

Video

Play Video

Advantages

  1. No discoloration, no bulge, no chamfering; low dust, low smoke;
  2. Cutting accuracy ±30μm; CCD resolution <5μm;
  3. Compatible with various FPCB substrates. Swift switch between different products. Multi-language user interface;
  4. Customized carrier board fits the product perfectly. All-rounded shockproof design ensures stability;
  5. High-speed vision system for positioning. Real-time monitoring and sorting out NG product;
  6. 16 PNP nozzles for high speed & high accuracy placing.

Specifications

UPHPositioning AccuracyCutting AccuracyLaser SpotLaser PowerMachine PowerPower SupplyMachine Dimensions
Custom designed<5μm±30μmΦ=12μm10W/15W/20W/30W≤5kWAC 380V2500×1700×1900mm

solutions

Application

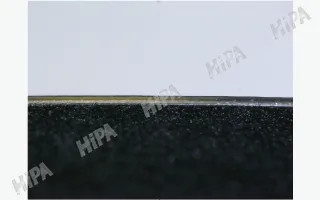

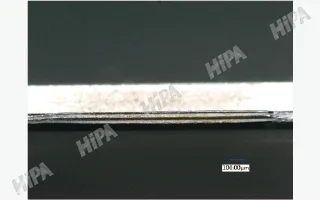

Effects

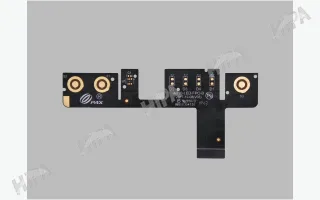

Various types of FPCB substrates.
