QCW Fiber Laser Welding System with Scanner

Product Description

This system uses QCW fiber laser as the light source. Various welding methods such as continuous welding, quasi-continuous welding, and single-pulse point welding are realized by controlling the welding path with the galvanometer. The heat input is precisely controlled by editing the waveform and adjusting the duty cycle, so as to realize lap welding or butt welding of metal sheets, especially stainless steel, nickel, copper, etc.

Video

Play Video

Advantages

1. The self-developed QCW fiber laser is available in continuous and quasi-continuous modes, and average power reaches 600W;

2. High peak power (1.5/3/6kW), high single-point pulse energy (15/30/60J), flexible and adjustable energy mode;

3. Equipped with a galvanometer, continuous pulse point welding and single-pulse point welding can be realized, and with flexible and adjustable welding position and form;

4. Waveform editing function can precisely control the pulse energy to reduce thermal deformation, which makes it suitable for thin plate materials welding such as stainless steel and copper;

5. Coaxial vision system and XYZ motion axis can realize multi-position welding of large-size products with high welding precision;

6. This high-stability platform system is available in single and double stations and is widely used in the welding of consumer electronic products.

Specifications

Laser Source

Wavelength

Average Power

Peak Power

Pulse Energy

Fiber Diameter

Fiber Interface

QCW Fiber Laser

1080nm

120/150/300/450/600W

0.75/1.5/3/4.5/6kW

Max: 15/30/60J

20-200μm

QBH

Cooling Mode

Positioning Accuracy

FOV

Scanning Range

Weld Point Size

XYZ-axis Stroke

Machine Dimension

Air-cooling

±5μm

20×15mm

100×100mm

≥0.2mm

300×300×200mm

900×1000×1800mm

solutions

Application

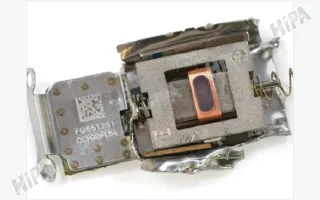

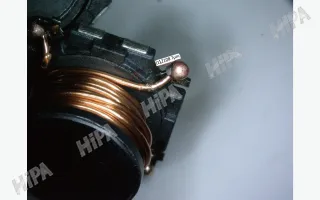

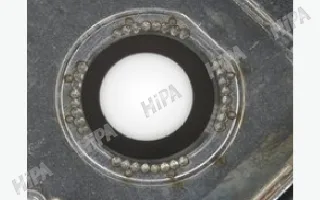

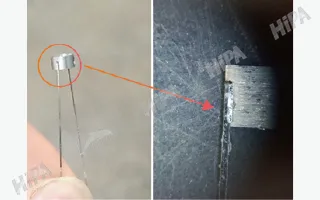

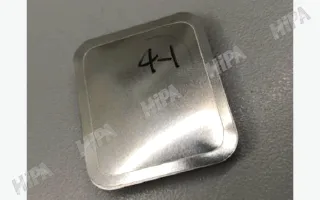

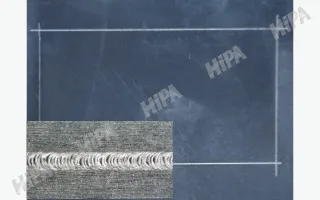

Effects

consumer electronics, passive components, hardware and electric appliances, medical devices, instrument and apparatus, new energy, etc.
