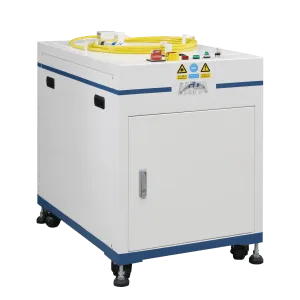

The wavelength of diode blue laser is 450nm, which can be greatly absorbed by high-reflection metal material, thus it can realize high-stability and high-quality welding of gold, silver, copper and their alloys. The blue laser has high beam quality and strong penetration ability. It can achieve penetration welding of 1.5mm copper, 2mm manganese copper, 2mm nickel-chromium alloy and so on. The maximum continuous laser power output of 1500W can achieve a welding speed of more than 200mm/s, which greatly improves the production capacity. It can be used in automotive parts, passive components, new energy power batteries, electronic components and other industries.
Video
Advantages
Standard design of machine cabinet, compatible with 300-1500W blue laser power output;
Machine cabinet with constant temperature and humidity, power stability <±2%;
IPC can be placed inside the machine cabinet, easy to integrate into the automatic production line;
Different welding solutions including scanner, collimating & focusing, and hybrid welding according to different scenarios;
Good absorbability of high reflection metal;
Stable molten pool and welding effect, fastest welding speed reaches more than 200mm/s.
Specifications
Optical parameter | Average power | 300W | 500W | 800W | 1000W | 1500W |
Wavelength | 450nm | 450nm | 450nm | 450nm | 450nm | |
Beam quality | 20mm*mrad | 60mm*mrad | 20mm*mrad | 40mm*mrad | 30mm*mrad | |
Fiber core diameter | 400μm | 600μm | 400μm | 400μm | 600μm | |
NA | 0.1 | 0.2 | 0.1 | 0.2 | 0.1 | |
Power stability | <±2% | |||||
Fiber length | 5m~20m (Customizable) | |||||
Fiber interface | LLK-D | |||||
Cooling mode | Water-cooling | |||||
Laser mode | CW | |||||
Welding head | 450nm blue laser customized welding head (Optional type) | |||||
Type of welding head | Collimating & Focusing Scanner | Collimating &Focusing | Collimating & Focusing Scanner | Collimating & Focusing | Collimating & Focusing | |
Electric parameter | Voltage | AC 380V, 3PH, 50/60Hz | ||||
Standard electric power | 3.2kW | 3.7kW | 4.7kW | 7.2kW | 8.8kW | |
Standard cooling power | 2.4kW | 2.7kW | 3.4kW | 5.7kW | 6.8kW | |
External input | 24V digital signal, 0-10V analog control, 32 sets of waveform available | |||||
Communication interface | RS232 | |||||
Overall system | Machine weight | 180Kg | 190Kg | 240Kg | 250Kg | 260Kg |
Machine dimension | 200mm×650mm×1100mm | |||||
Environment | Temperature | Operating: 10~45℃, Storage: 5~56℃ | ||||
Humidity | Max. 70%@25℃, no condensation | |||||
